Network Slicing sst / sd / sNSSAI calculator

Author: Dustin_Chen, email: Dustin_Chen@compal.com or chuhpsdustin@gmail.com

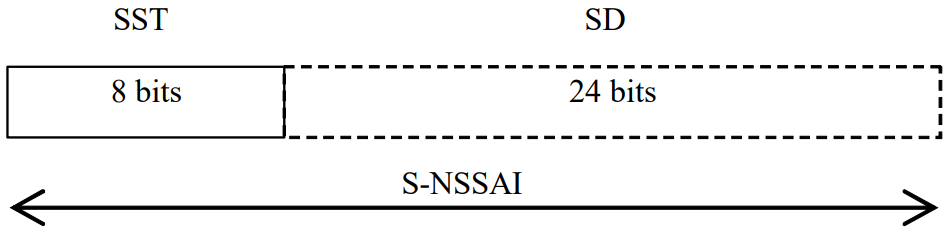

< 23.003 - Figure 28.4.2-1: Structure of S-NSSAI> The SST is 2 HEX bits. The SD is 6 HEX bits. The sNSSAI is 8 HEX bits. The CU,DU xml are DEC format.

• Example
  • Compal_Saviah => Input SST = 01, SD = 010203 => Calculate sst = 1, sd = 66051, sNSSAI = 16843267 (filled into CU,DU xml)
  • Auray_Viavi => Input SST = 01, SD = 030609 => Calculate sst = 1, sd = 198153, sNSSAI = 16975369 (filled into CU,DU xml)
  • CSC_Cisco => Input SST = 02, SD = 000001 => Calculate sst = 2, sd = 1, sNSSAI = 33554433 (filled into CU,DU xml)
  • example => Input SST = 01, SD = FFFFFF => Calculate sst = 1, sd = 16777215, sNSSAI = 33554431 (filled into CU,DU xml)


• Input the SST, SD below, and press "Calculate" to get the CU, DU xml parameter
  • Slice service type(SST)(2 HEX bits):
  • Slice differentiator(SD)(6 HEX bits):
  Calculate


  sst (DEC value, 0 to 255 = 2^8-1) =

  sd (DEC value, 0 to 16777215 = 2^24-1) =

  sNSSAI (DEC value, 0 to 4294967295 = 2^32-1) =




  CU xml(DEC value):

  DU xml(DEC value):
