- n41 => freq range [2496000, 2690000]
- n48 => freq range [3550000, 3700000]
- n78 => freq range [3300000, 3800000]
- n79 => freq range [4400000, 5000000] → (RadiSys code):For n79, CORESET0 use 38.213 Table 13-6 Index 4
- (RadiSys code): if BW>=48, CORESET0 use Table 13-4 Index 10. // Try to have 48 RB size for CS-0 to avoid allocation failure for SIB1 during SSB(20RBs) overlap
- (RadiSys code): if BW<48, CORESET0 use Table Index 0. // if 48 RB is not available, get the best fit CS0
38.101-1 Table 5.3.2-1 SCS=30
| BW(MHz) | carrierBw(RB) |
|---|---|
| 100 | 273 |
| 90 | 245 |
| 80 | 217 |
| 60 | 162 |
| 50 | 133 |
| 40 | 106 |
| 30 | 78 |
| 25 | 65 |
| 20 | 51 |
| 15 | 38 |
| 10 | 24 |
38.213 Table 13-4: {30,30} miniBW 5 or 10 MHz
| Index | coreset0numRBs | coreset0OffsetRB |
|---|---|---|
| 0 | 24 | 0 |
| 1 | 24 | 1 |
| 2 | 24 | 2 |
| 3 | 24 | 3 |
| 4 | 24 | 4 |
| 5 | 24 | 0 |
| 6 | 24 | 1 |
| 7 | 24 | 2 |
| 8 | 24 | 3 |
| 9 | 24 | 4 |
| 10 | 48 | 12 |
| 11 | 48 | 14 |
| 12 | 48 | 16 |
| 13 | 48 | 12 |
| 14 | 48 | 14 |
| 15 | 48 | 16 |
38.213 Table 13-6: {30,30} miniBW 40 MHz
| Index | coreset0numRBs | coreset0OffsetRB |
|---|---|---|
| 0 | 24 | 0 |
| 1 | 24 | 4 |
| 2 | 24 | 0 |
| 3 | 24 | 4 |
| 4 | 48 | 0 |
| 5 | 48 | 28 |
| 6 | 48 | 0 |
| 7 | 48 | 28 |
| 8 | 48 | 0 |
| 9 | 48 | 28 |

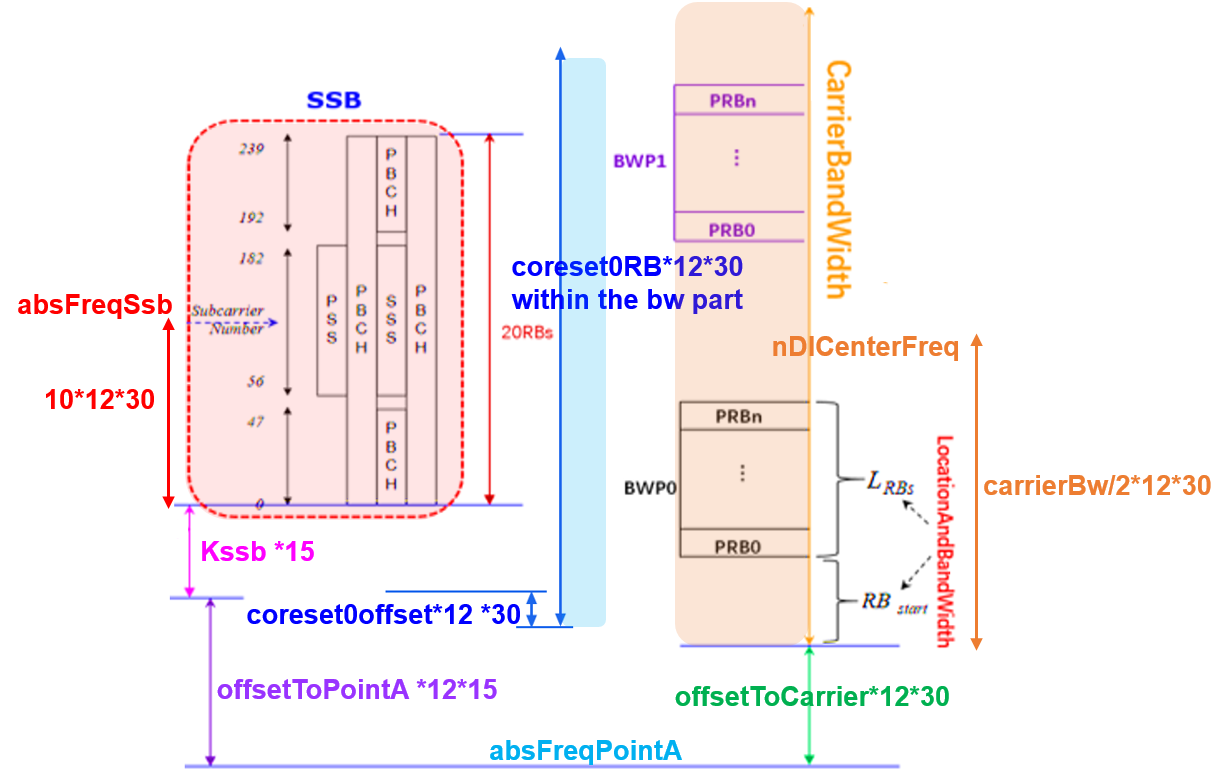

- ex:(band, carrierBw(RB), freq_low, freq_high)=(78, 273, 3603840, 3603840) / (79, 273, 4849860, 4849860) / (41, 273, 2565750, 2565750)
